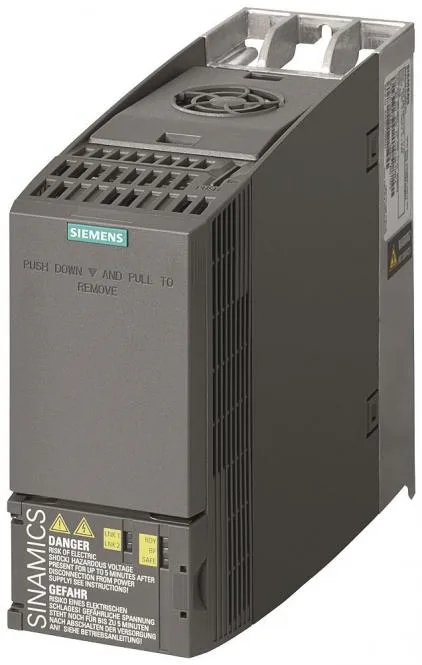

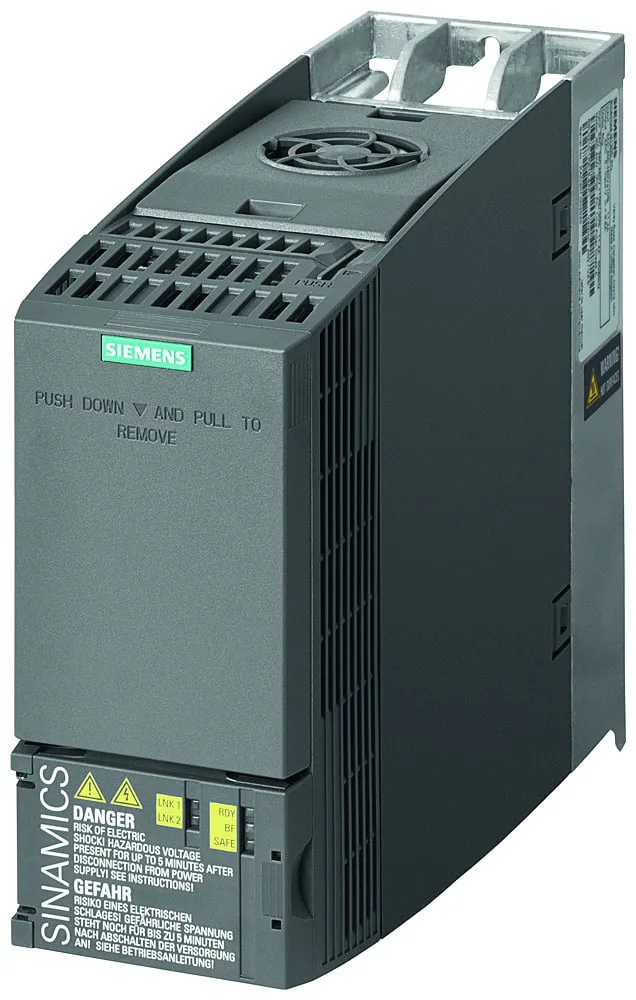

SIEM 6SL3210-1KE17-5AB1 SINAMICS G120C Rated power: 3.0kW with 150% overload for

Siemens
EAN
4042948663103
Manufacturer article
6SL32101KE175AB1
SKU
BU3876772
Brand
Siemens

Delivery options

BU3876772 You are viewing
15 days On order
€725.46
ZA3876772 Open
19 days On order
€859.48
BU3876772
Delivery in:
within 15 business days
EAN:
4042948663103
Manufacture code:
6SL32101KE175AB1
Weee number:
DE23691322
All features
SIEM 6SL3210-1KE17-5AB1 SINAMICS G120C N 150% overload for 3 Sec. 3AC380-480V+10
Full description
€725.46
1 piece (€725.46 per piece)
+ −

Minimum quantity for "SIEM 6SL3210-1KE17-5AB1 SINAMICS G120C Rated power: 3.0kW with 150% overload for" is 1.

€725.46
Estimated shipping date:
Product request
Need information about several products? Add them to your cart and send one request from the cart page.
Contact details
SIEM 6SL3210-1KE17-5AB1 SINAMICS G120C N 150% overload for 3 Sec. 3AC380-480V+10
4-quadrant operation possible:
Application in domestic- and commercial area permitted:
Application in industrial area permitted:
Delivery in:
within 15 business days
Depth:
203mm
EAN:
4042948663103
Height:
196mm
HS code:
85044087
Integrated breaking resistance:
Mains voltage (max):
480V
Mains voltage (min):
380V
Manufacture code:
6SL32101KE175AB1
Max. output at linear load at rated output voltage:
2.2kW
Max. output at quadratic load at rated output voltage:
3kW
Max. output frequency:
550Hz
Max. output voltage:
480V
Nominal output current I2N:
7.5A
Number of analogue inputs:
1
Number of analogue outputs:
1
Number of digital inputs:
6
Number of digital outputs:
2
Number of HW-interfaces industrial Ethernet:
0
Number of HW-interfaces other:
6
Number of HW-interfaces parallel:
0
Number of HW-interfaces RS-232:
1
Number of HW-interfaces RS-422:
0
Number of HW-interfaces RS-485:
1
Number of HW-interfaces serial TTY:
1
Number of HW-interfaces USB:
1
Number of interfaces PROFINET:
0
Number of phases input:
3
Number of phases output:
3
REACH:
Yes
Relative symmetric net frequency tolerance:
5%
Relative symmetric net voltage tolerance:
-20%
Supporting protocol for AS-Interface Safety at Work:
Supporting protocol for ASI:
Supporting protocol for BACnet:
Supporting protocol for CAN:
Supporting protocol for Data-Highway:
Supporting protocol for DeviceNet:
Supporting protocol for DeviceNet Safety:
Supporting protocol for EtherNet/IP:
Supporting protocol for Foundation Fieldbus:
Supporting protocol for INTERBUS:
Supporting protocol for INTERBUS-Safety:
Supporting protocol for KNX:
Supporting protocol for LON:
Supporting protocol for Modbus:
Supporting protocol for other bus systems:
Supporting protocol for PROFIBUS:
Supporting protocol for PROFINET CBA:
Supporting protocol for PROFINET IO:
Supporting protocol for PROFIsafe:
Supporting protocol for SafetyBUS p:
Supporting protocol for SERCOS:
Supporting protocol for SUCONET:
Supporting protocol for TCP/IP:
Weee number:
DE23691322
With optical interface:
With PC connection:
