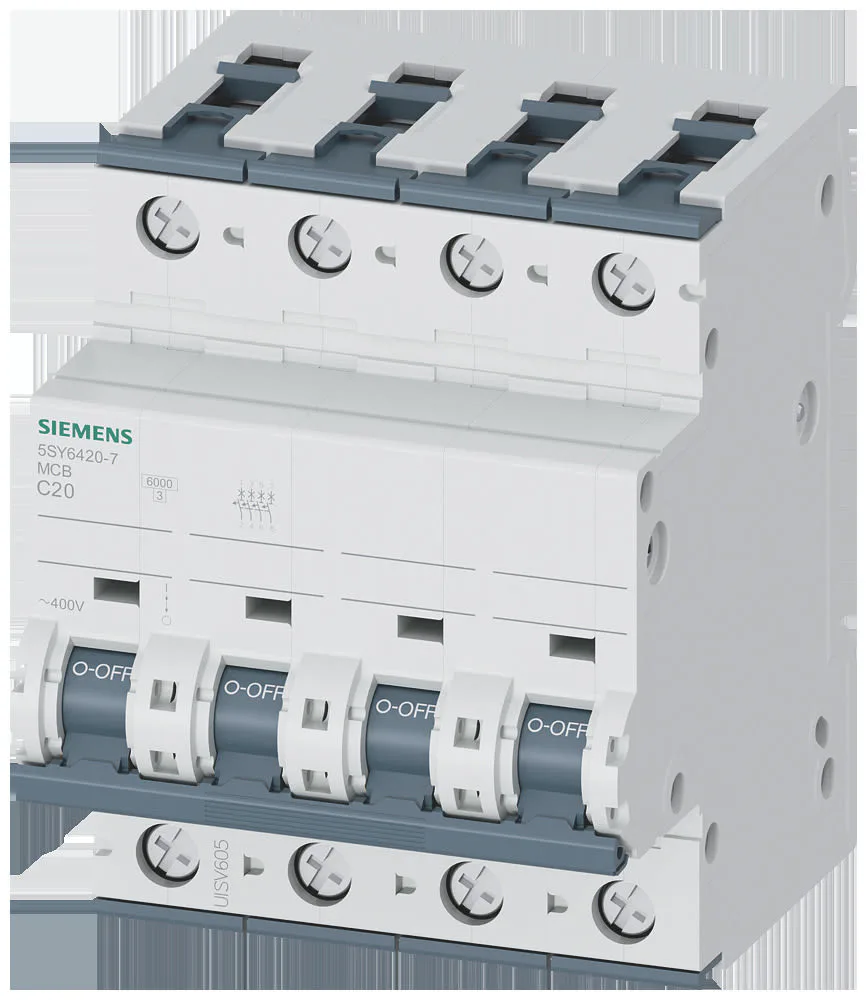

Siemens 5SY6420-7 Circuit Breaker 400V 6kA 4p C 20A T=70mm
Additional equipment possible:
Ambient temperature during operating (max):
55°C
Ambient temperature during operating (min):
-25°C
Connectable conductor cross section multi-wired (max):
35mm2
Connectable conductor cross section multi-wired (min):
0.75mm2
Connectable conductor cross section solid-core (max):
35mm2
Connectable conductor cross section solid-core (min):
0.75mm2
Current limiting class:
3
Degree of protection (IP):
IP20
Delivery in:
within 15 business days
EAN:
4001869247465
Explosion-proof:
Flush-mounted installation:
HS code:
85362010
Manufacture code:
5SY64207
Number of poles (total):
4
Number of protected poles:
4
Pollution degree:
3
Power loss:
6.8W
Rated impulse withstand voltage Uimp:
4000kV
Rated insulation voltage Ui:
440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V:
6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V:
6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V:
15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V:
15kA
REACH:
No
Release characteristic:
C
Voltage type:
AC
Weee number:
DE23691322
Width in number of modular spacings:
4
