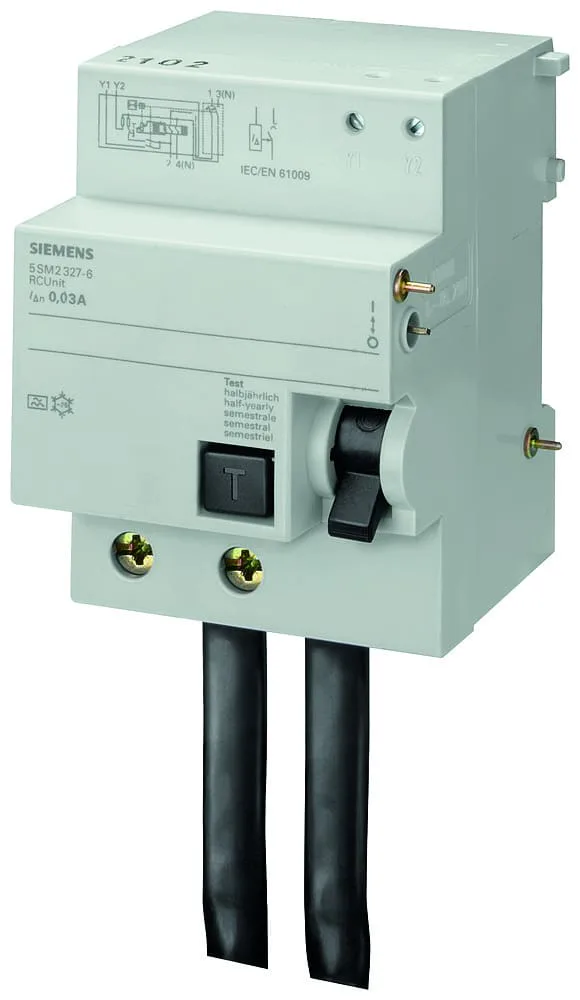

SIEM 5SM2327-0 FI-BLOCK FOR LS-SWITCH 5SX 6+7 TYPE AC (WS), T=7

Siemens
EAN
4001869144108
Manufacturer article
5SM23270
SKU
BU0175172
Brand
Siemens

Delivery options

BU0175172 You are viewing
15 days On order
€210.10
ZA175172 Open
19 days On order
€205.34
BU0175172
Delivery in:
within 15 business days
EAN:
4001869144108
Manufacture code:
5SM23270
Weee number:
DE23691322
All features
Siemens 5SM2327-0 FI-Block 2-pole Type AC 100A 30mA AC230V for 5SP4
Full description
€210.10
1 piece (€210.10 per piece)
+ −

Minimum quantity for "SIEM 5SM2327-0 FI-BLOCK FOR LS-SWITCH 5SX 6+7 TYPE AC (WS), T=7" is 1.

€210.10
Estimated shipping date:
Product request
Need information about several products? Add them to your cart and send one request from the cart page.
Contact details
Siemens 5SM2327-0 FI-Block 2-pole Type AC 100A 30mA AC230V for 5SP4
Ambient temperature during operating (max):
45°C
Ambient temperature during operating (min):
-25°C
Anti-nuisance tripping version:
Connectable conductor cross section multi-wired (max):
50mm2
Connectable conductor cross section multi-wired (min):
6mm2
Connectable conductor cross section solid-core (max):
50mm2
Connectable conductor cross section solid-core (min):
6mm2
Degree of protection (IP):
IP20
Delay adjustable:
Delivery in:
within 15 business days
EAN:
4001869144108
Frequency:
50 Hz
HS code:
85362090
Leakage current type:
AC
Manufacture code:
5SM23270
Number of poles:
2
Pollution degree:
2
Rated fault current (max):
30A
Rated fault current (min):
30A
Rated fault current adjustable:
Rated impulse withstand voltage Uimp:
1kV
Rated insulation voltage Ui:
460V
REACH:
Yes
Surge current capacity:
4000kA
Weee number:
DE23691322
With interlocking device:
