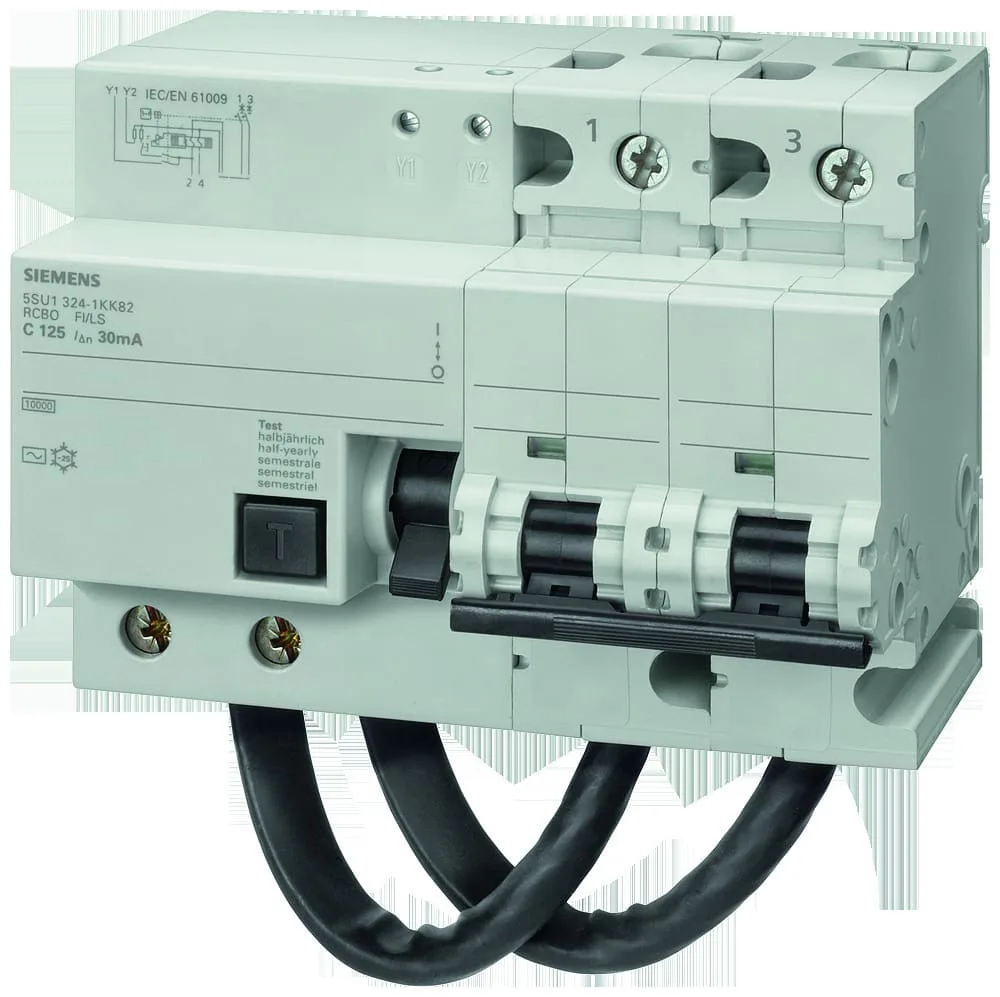

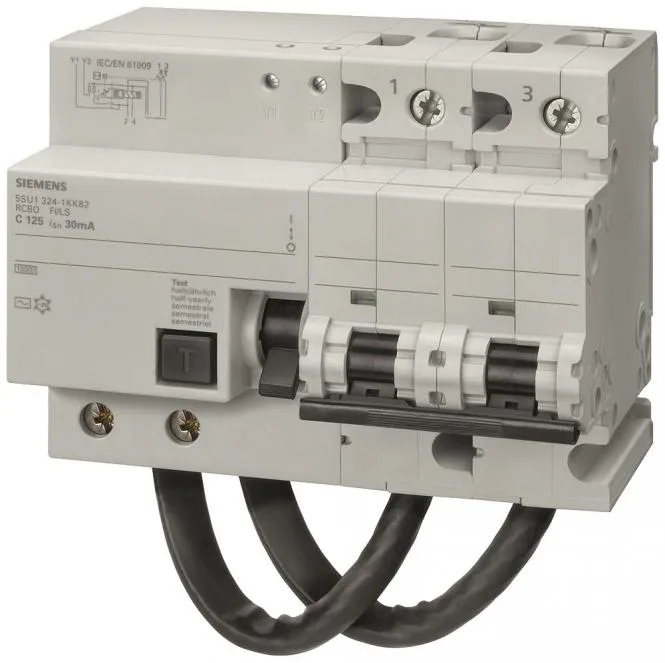

SIEM 5SU1624-6WK82 RCD/Circuit Breaker Type A (PSE), T=70mm IFN 300mA, 10k

Siemens
EAN
4001869360041
Manufacturer article
5SU16246WK82
SKU
BU2721028
Brand
Siemens

Delivery options

BU2721028 You are viewing
15 days On order
€1656.48
ZA2721028 Open
19 days On order
€1638.00
BU2721028
Delivery in:
within 15 business days
EAN:
4001869360041
Manufacture code:
5SU16246WK82
Weee number:
DE23691322
All features
Siemens 5SU1624-6WK82 RCD/Circuit Breaker 10kA 2p Type A sel. 300mA B 125A AC230V
Full description
€1 656.48
1 piece (€1 656.48 per piece)
+ −

Minimum quantity for "SIEM 5SU1624-6WK82 RCD/Circuit Breaker Type A (PSE), T=70mm IFN 300mA, 10k" is 1.

€1 656.48
Estimated shipping date:
Product request
Need information about several products? Add them to your cart and send one request from the cart page.
Contact details
Siemens 5SU1624-6WK82 RCD/Circuit Breaker 10kA 2p Type A sel. 300mA B 125A AC230V
Ambient temperature during operating (max):
55°C
Ambient temperature during operating (min):
-25°C
Anti-nuisance tripping version:
Connectable conductor cross section multi-wired (max):
50mm2
Connectable conductor cross section multi-wired (min):
6mm2
Connectable conductor cross section solid-core (max):
50mm2
Connectable conductor cross section solid-core (min):
6mm2
Current limiting class:
3
Degree of protection (IP):
IP20
Delivery in:
within 15 business days
EAN:
4001869360041
HS code:
85362090
Leakage current type:
A
Manufacture code:
5SU16246WK82
Number of poles (total):
2
Number of protected poles:
2
Pollution degree:
2
Rated impulse withstand voltage Uimp:
4000kV
Rated insulation voltage Ui:
440V
Rated short-circuit breaking capacity according to EN 61009:
10kA
Rated short-circuit breaking capacity according to IEC 60947-2:
10kA
Rated short-circuit breaking capacity Icn according to EN 61009-1:
10kA
REACH:
Yes
Release characteristic:
B
Surge current capacity:
5kA
Voltage type:
AC
Weee number:
DE23691322
Width in number of modular spacings:
7
With interlocking device:
