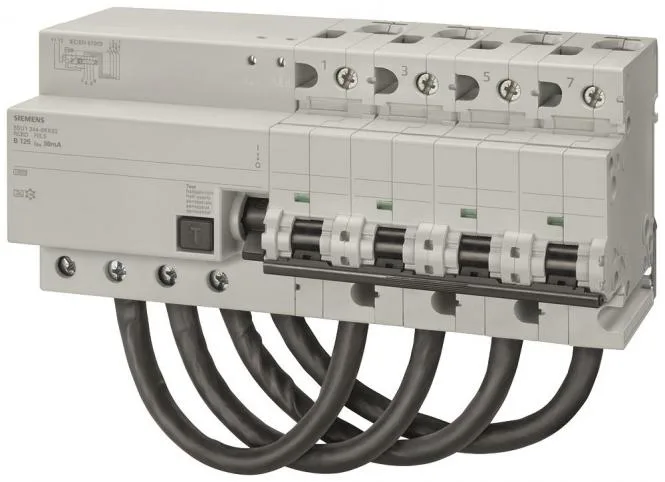

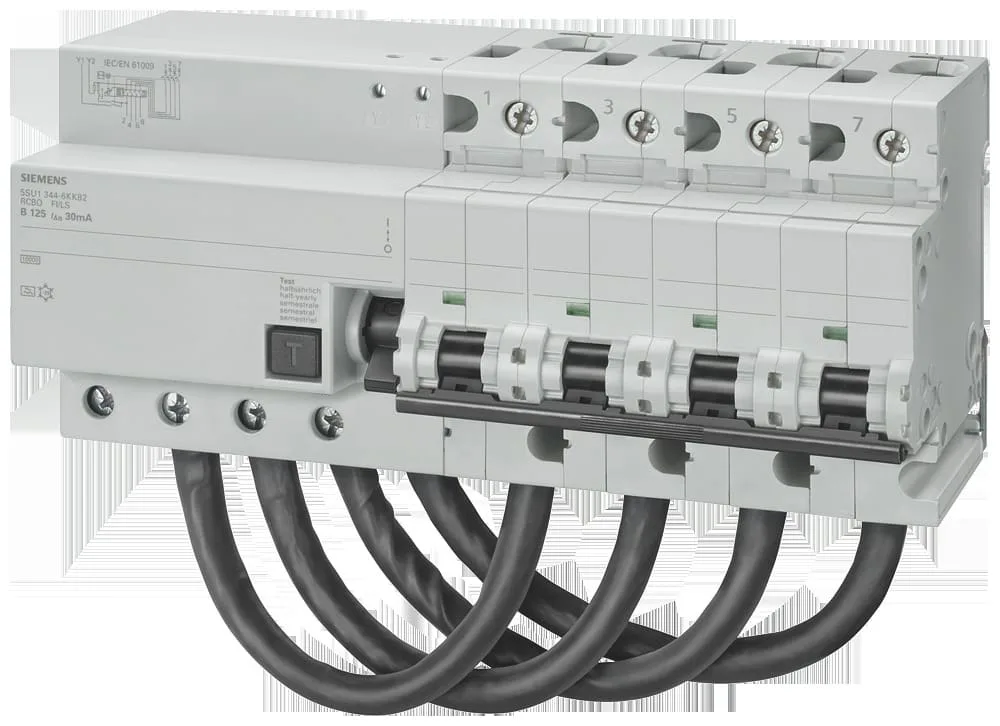

SIEM 5SU1674-7AK82 RCD/Circuit Breaker Type B, 125A, 300mA, 4-pole, 10kA

Siemens
EAN
4001869332338
Manufacturer article
5SU16747AK82
SKU
BU2188035
Brand
Siemens

Delivery options

BU2188035 You are viewing
15 days On order
€2455.49
ZA2188035 Open
19 days On order
€2437.34
BU2188035
Delivery in:
within 15 business days
EAN:
4001869332338
Manufacture code:
5SU16747AK82
Weee number:
DE23691322
All features
SIEM 5SU1674-7AK82 RCD/Circuit Breaker Type B, 125A, 300mA, 4-pole, 10kA
Full description
€2 455.49
1 piece (€2 455.49 per piece)
+ −

Minimum quantity for "SIEM 5SU1674-7AK82 RCD/Circuit Breaker Type B, 125A, 300mA, 4-pole, 10kA" is 1.

€2 455.49
Estimated shipping date:
Product request
Need information about several products? Add them to your cart and send one request from the cart page.
Contact details
SIEM 5SU1674-7AK82 RCD/Circuit Breaker Type B, 125A, 300mA, 4-pole, 10kA
Ambient temperature during operating (max):
55°C
Ambient temperature during operating (min):
-25°C
Anti-nuisance tripping version:
Connectable conductor cross section multi-wired (max):
50mm2
Connectable conductor cross section multi-wired (min):
6mm2
Connectable conductor cross section solid-core (max):
50mm2
Connectable conductor cross section solid-core (min):
6mm2
Current limiting class:
3
Degree of protection (IP):
IP20
Delivery in:
within 15 business days
EAN:
4001869332338
HS code:
85362090
Leakage current type:
B
Manufacture code:
5SU16747AK82
Number of poles (total):
4
Number of protected poles:
4
Pollution degree:
2
Power loss:
66W
Rated impulse withstand voltage Uimp:
4000kV
Rated insulation voltage Ui:
440V
Rated short-circuit breaking capacity according to EN 61009:
10kA
Rated short-circuit breaking capacity according to IEC 60947-2:
10kA
Rated short-circuit breaking capacity Icn according to EN 61009-1:
10kA
REACH:
Yes
Release characteristic:
C
Surge current capacity:
3kA
Voltage type:
AC
Weee number:
DE23691322
Width in number of modular spacings:
11
With interlocking device:
