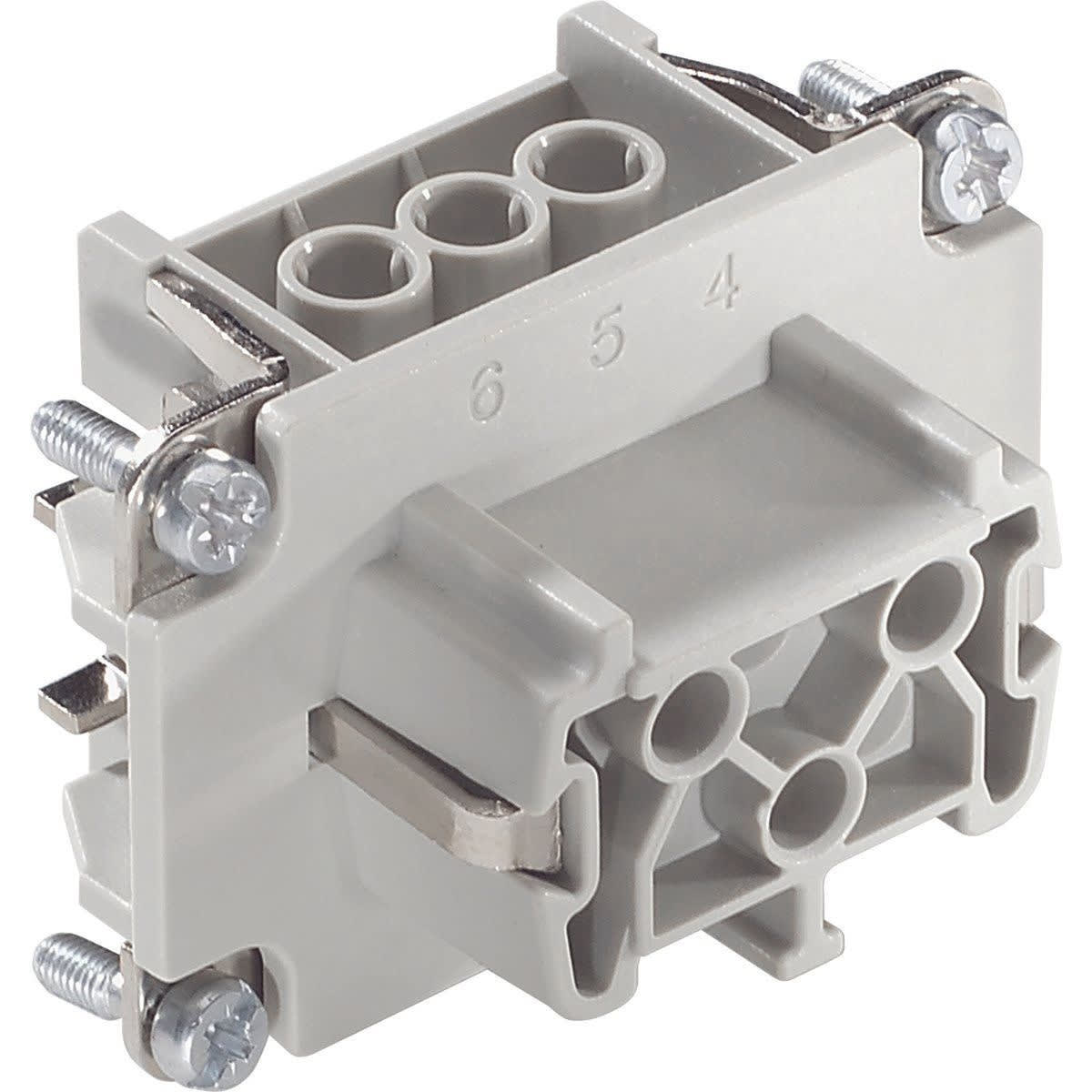

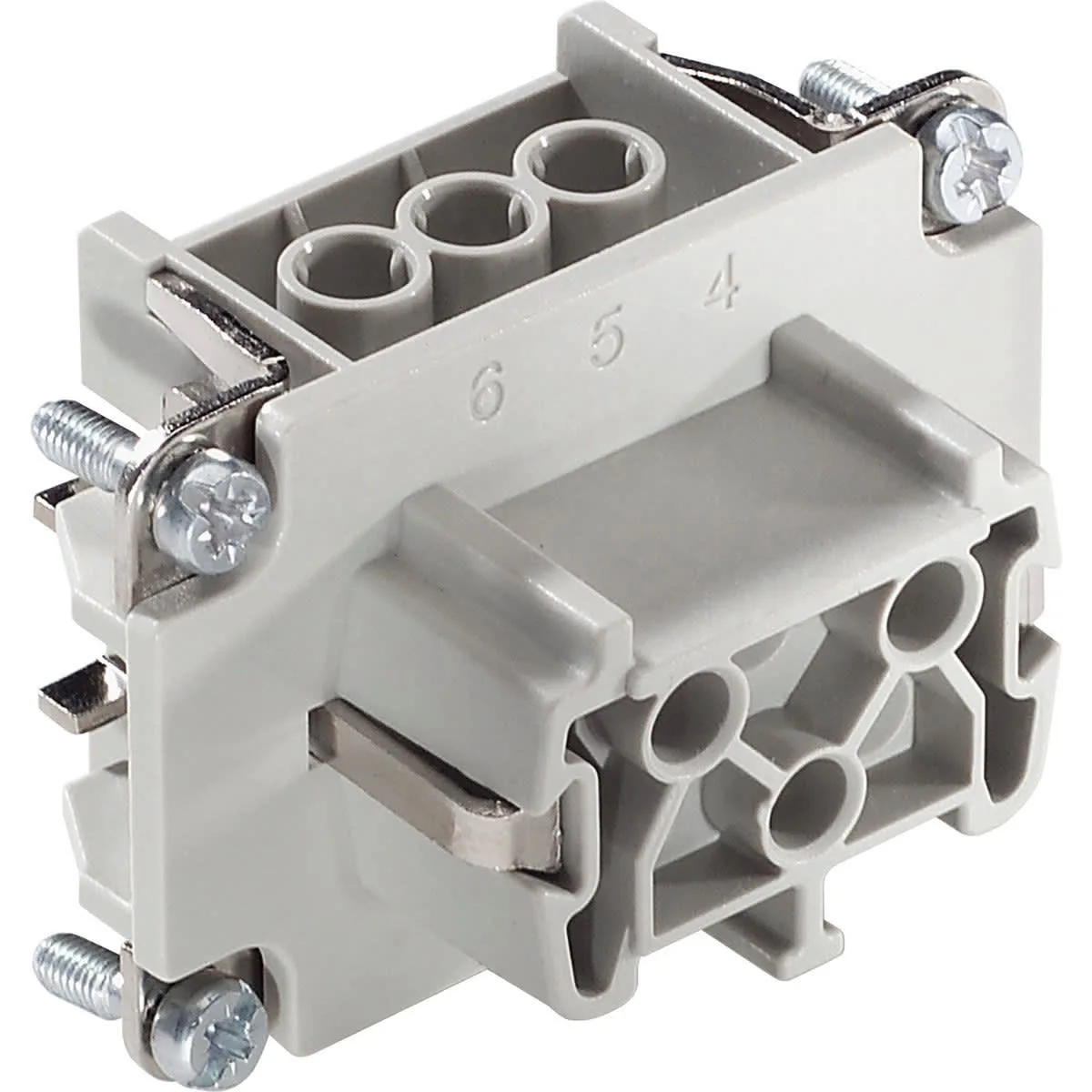

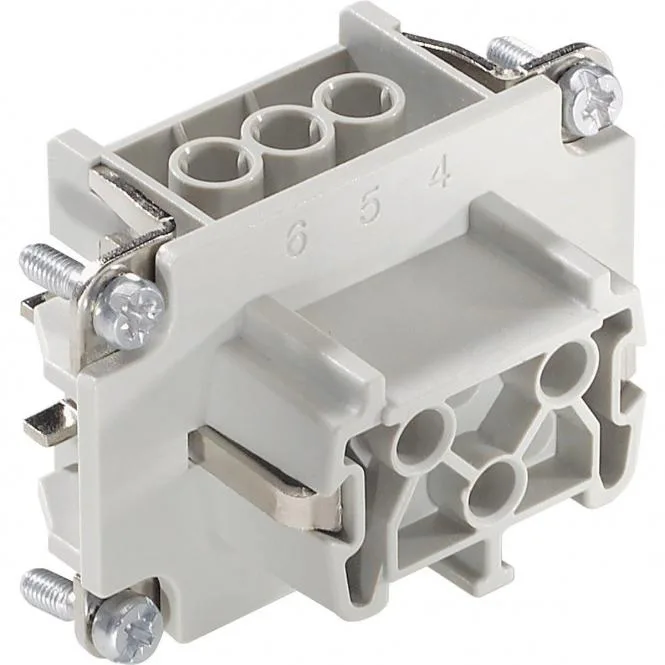

LAPP 10191000 Socket Insert H-BE 6 BS

UI LAPP
EAN
4044773054842
Manufacturer article
10191000
SKU
BU2576476
Brand
UI LAPP

Delivery options

BU2576476 You are viewing
15 days On order
€46.98 €4.70 / 1 pc
ZA2576476 Open
19 days On order
€52.77 €5.28 / 1 pc
BU2576476
Delivery in:
within 15 business days
EAN:
4044773054842
Manufacture code:
10191000
Weee number:
DE14831145
All features
Lapp EPIC H-BE 6 BS DR Insert Socket up to 4mm² Screw. Wire protection 10191000
Full description
€46.98
10 piece (€46.98 per 10 piece)
+ −

Minimum quantity for "LAPP 10191000 Socket Insert H-BE 6 BS" is 1.

€46.98
Estimated shipping date:
Product request
Need information about several products? Add them to your cart and send one request from the cart page.
Contact details
Lapp EPIC H-BE 6 BS DR Insert Socket up to 4mm² Screw. Wire protection 10191000
Ambient temperature (max):
100°C
Ambient temperature (min):
-40°C
Bemessungsspannung:
500V
Bemessungsstrom In:
16A
Contact insert without contacts:
Contact type:
sonstige
Delivery in:
within 15 business days
Diameter plug-in contact:
2.5mm
EAN:
4044773054842
HS code:
85366990
Inflammability class of insulation material acc. with UL94:
V0
Manufacture code:
10191000
Material contact:
Eisen
Material of contact insert:
sonstige
Material of contact surface:
Silver
Min. number of insertion cycles:
500
Number of poles:
6
Number of power contacts:
6
Pollution degree:
3
Pollution degree:
3
Polzahl:
6
Rated current In:
16A
Rated surge voltage:
6kV
REACH:
Yes
Type of electric connection:
Screw connection
Weee number:
DE14831145
With protective conductor:
With wire protection:
