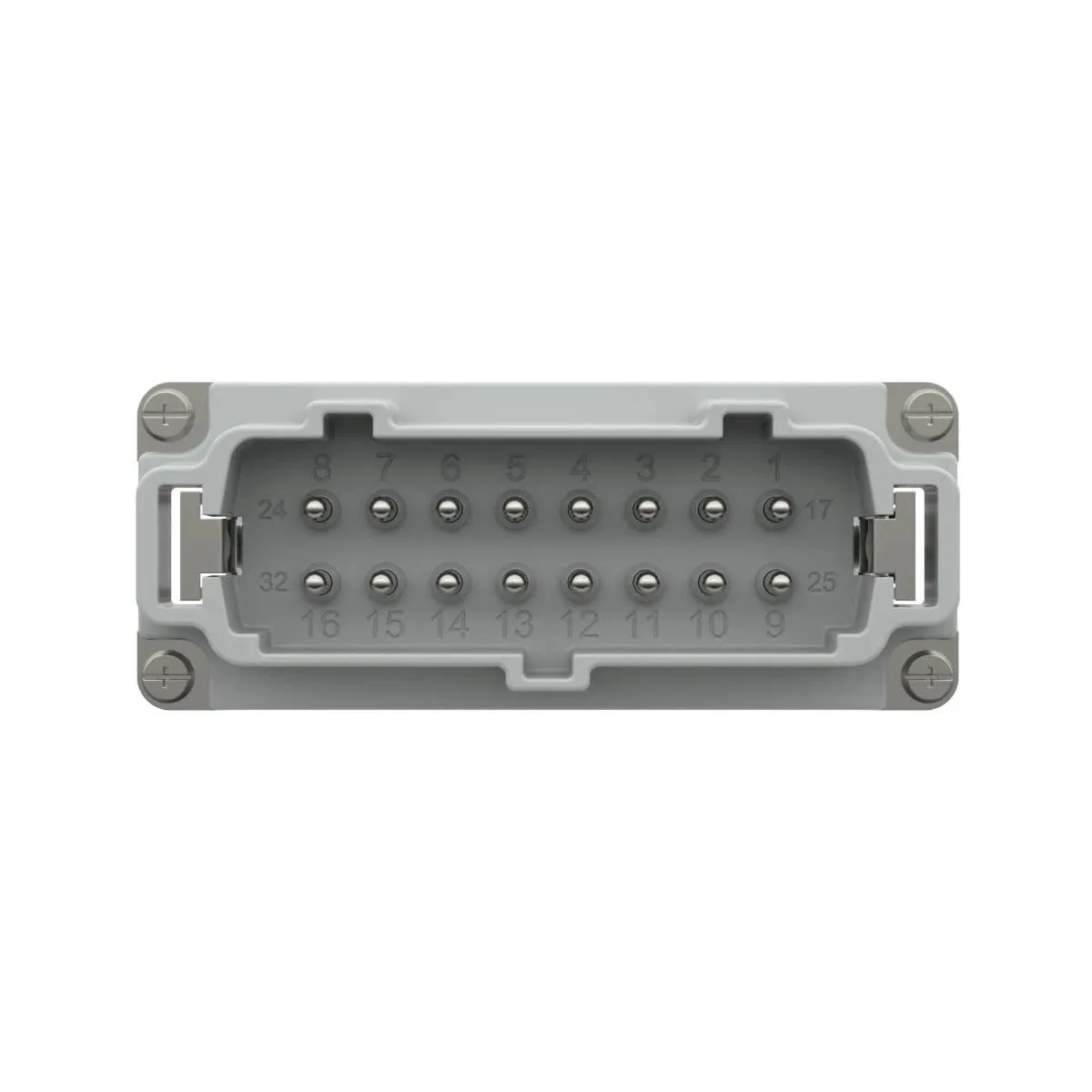

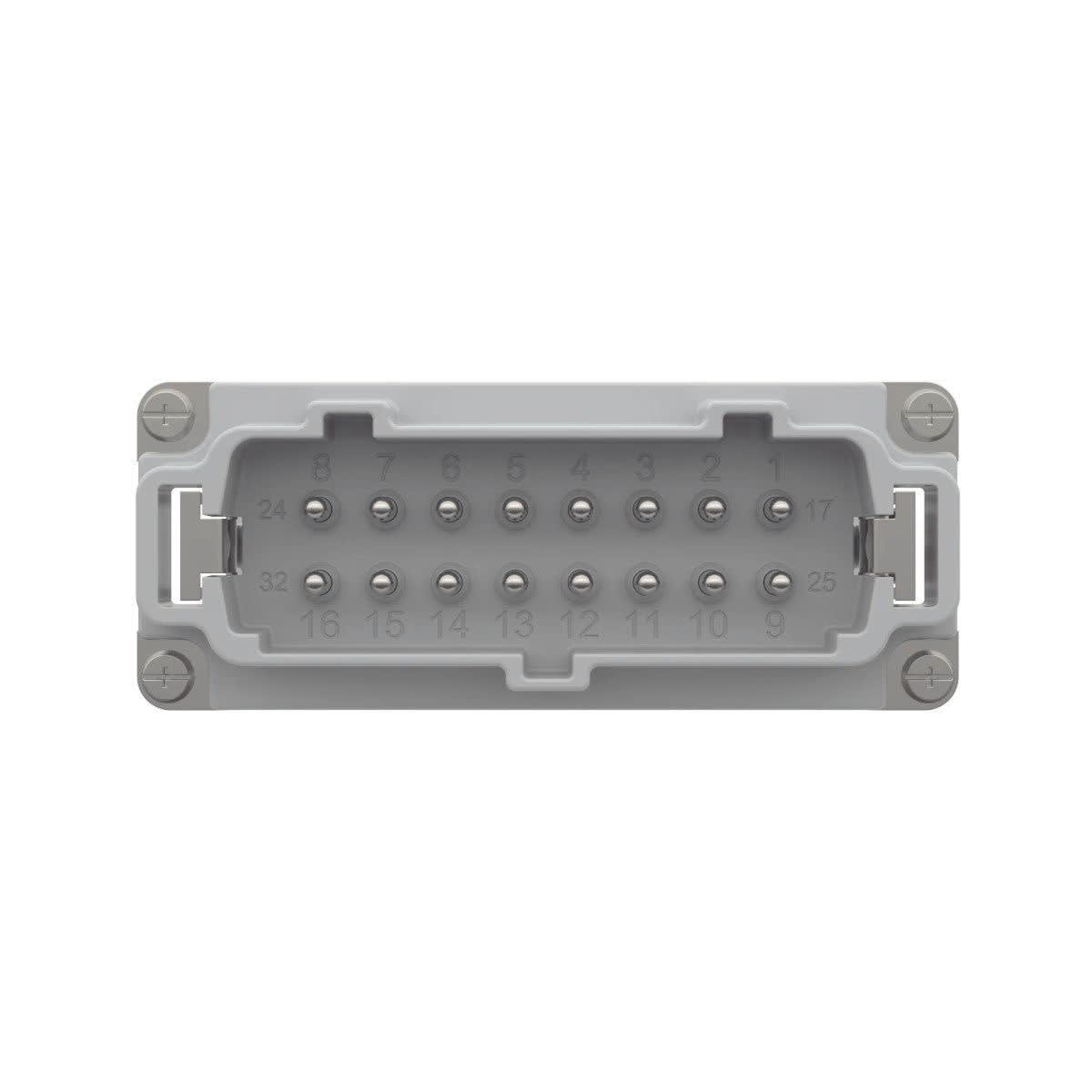

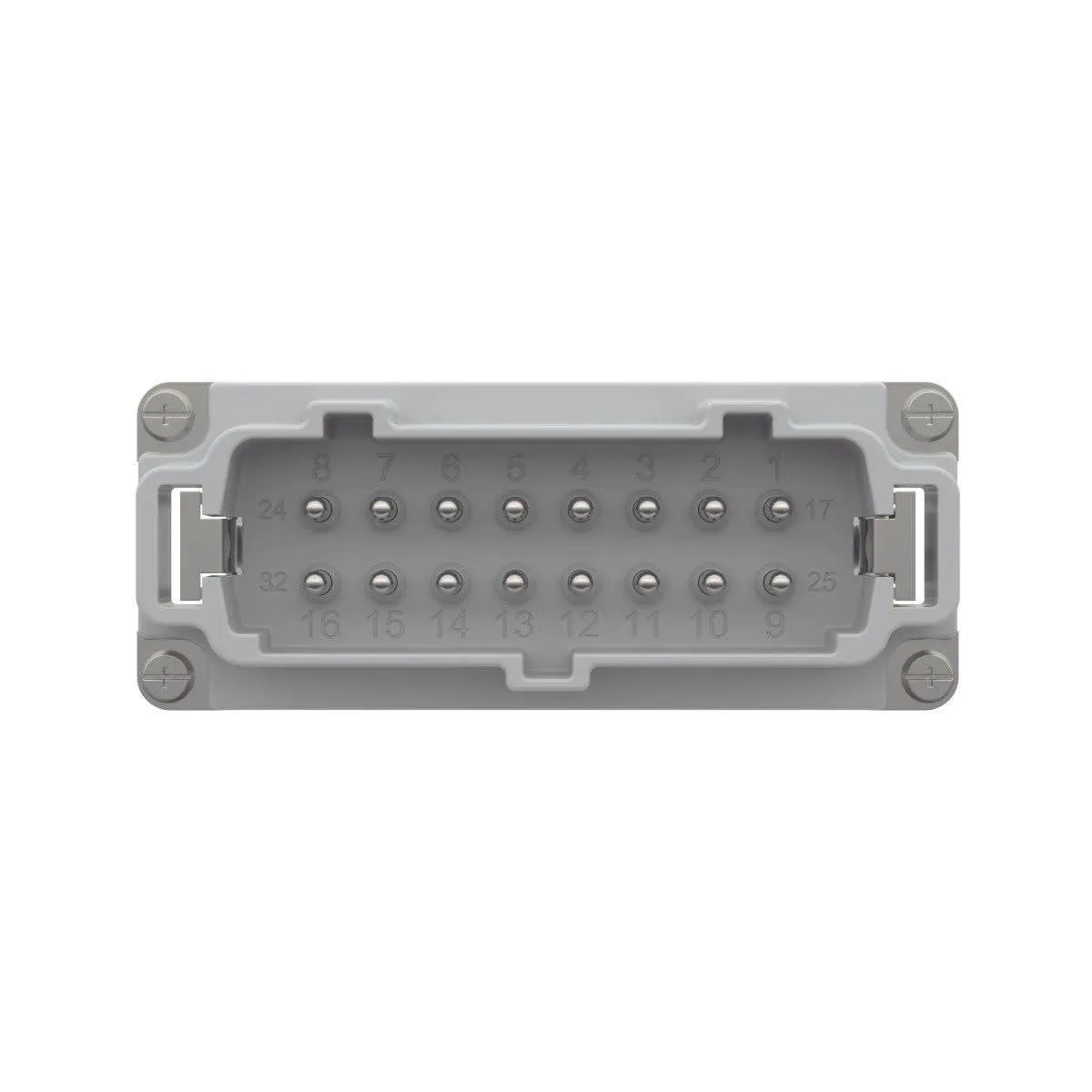

LAPP 10194000 Pin Insert H-BE 16 SS

UI LAPP
EAN
4044773054798
Manufacturer article
10194000
SKU
BU2576482
Brand
UI LAPP

Delivery options

BU2576482 You are viewing
15 days On order
€40.43 €8.09 / 1 pc
ZA2576482 Open
19 days On order
€45.34 €9.07 / 1 pc
BU2576482
Delivery in:
within 15 business days
EAN:
4044773054798
Manufacture code:
10194000
Weee number:
DE14831145
All features
Lapp EPIC H-BE16 SS DR Insert Socket up to 4mm² Screw. Wire protection 10194000
Full description
€40.43
5 piece (€40.43 per 5 piece)
+ −

Minimum quantity for "LAPP 10194000 Pin Insert H-BE 16 SS" is 1.

€40.43
Estimated shipping date:
Product request
Need information about several products? Add them to your cart and send one request from the cart page.
Contact details
Lapp EPIC H-BE16 SS DR Insert Socket up to 4mm² Screw. Wire protection 10194000
Ambient temperature (max):
100°C
Ambient temperature (min):
-40°C
Bemessungsspannung:
500V
Bemessungsstrom In:
16A
Contact insert without contacts:
Contact type:
Pin
Delivery in:
within 15 business days
Diameter plug-in contact:
2.5mm
EAN:
4044773054798
HS code:
85366990
Inflammability class of insulation material acc. with UL94:
V0
Manufacture code:
10194000
Material contact:
Eisen
Material of contact insert:
sonstige
Material of contact surface:
Silver
Min. number of insertion cycles:
500
Number of control contacts:
0
Number of poles:
16
Number of power contacts:
16
Pollution degree:
3
Pollution degree:
3
Polzahl:
16
Rated current In:
16A
Rated surge voltage:
6kV
REACH:
Yes
Type of electric connection:
Screw connection
Weee number:
DE14831145
With protective conductor:
With wire protection:
