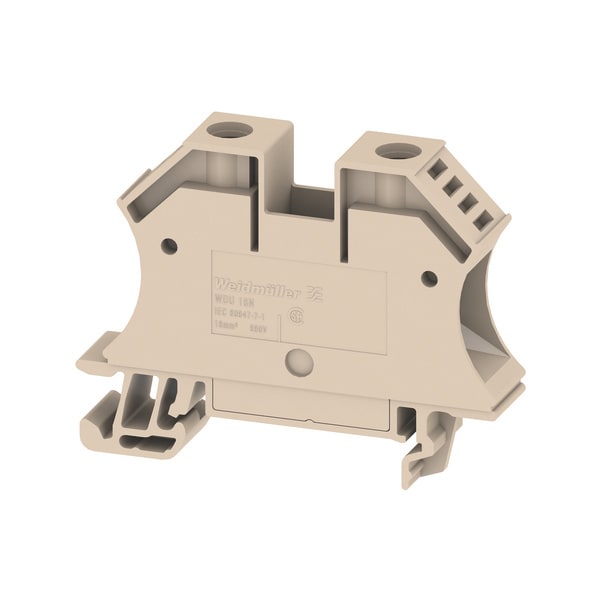

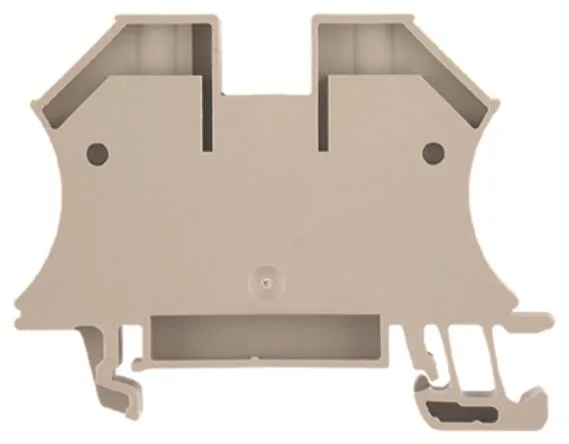

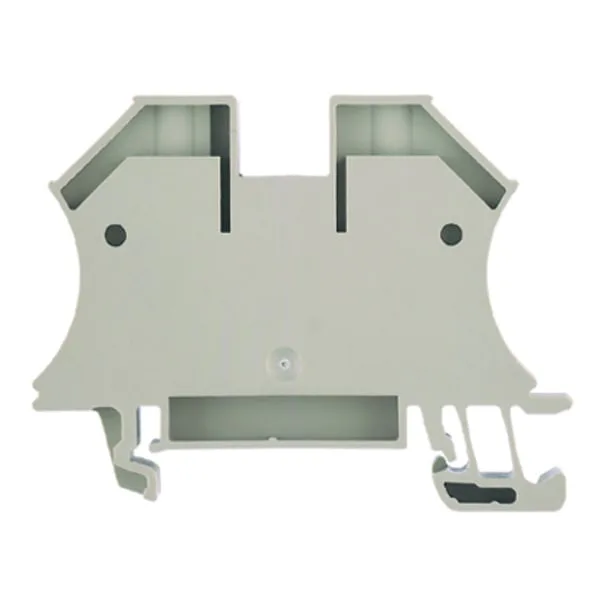

Weidmueller WDU 16N Terminal Block 16mm² Screw Connection 1036100000
Closing plate required:
Colour:
Beige
Connectable conductor cross section fine-strand with cable end sleeve (max):
16mm2
Connectable conductor cross section fine-strand with cable end sleeve (min):
1.5mm2
Connectable conductor cross section fine-strand without cable end sleeve (max):
16mm2
Connectable conductor cross section fine-strand without cable end sleeve (min):
1.5mm2
Connectable conductor cross section multi-wired (max):
25mm2
Connectable conductor cross section multi-wired (min):
1.5mm2
Connectable conductor cross section solid-core (max):
16mm2
Connectable conductor cross section solid-core (min):
1.5mm2
Delivery in:
within 2 business days
Depth:
46.5mm
EAN:
4008190273217
Explosion-tested version 'Ex e':
Height:
60mm
HS code:
85369010
Inflammability class of insulation material according to UL 94:
V0
Internally connected stages:
Manufacture code:
1036100000
Number of clamp positions per level:
2
Number of levels:
1
Rated current In:
76A
REACH:
No
Weee number:
DE73937473
