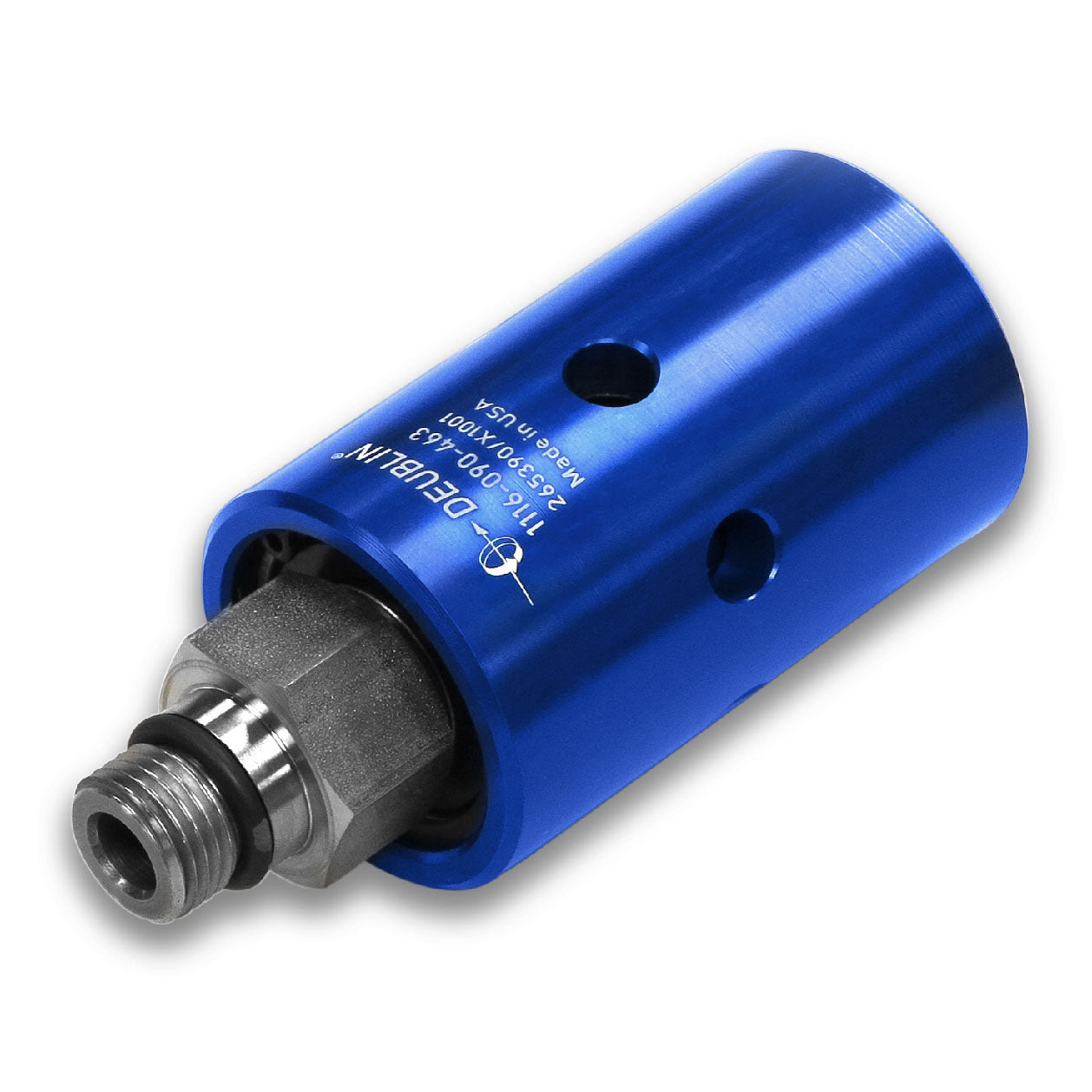

Produkt ähnelt der Abbildung
Deublin GmbH

DEUBLIN Rotary Union 1116-090-463

Herstellernummer: 1116-090-463
€235,00
€235,00
Spare
Auf Lager

  • Regellieferzeit: Lieferung in 3–5 Werktagen

Menge
Mengeneinheit
1 Stk.
Lagerbestand
3 Stk.
Produktbeschreibung

DEUBLIN Rotary Union 1116-090-463

  • Single passage for coolant or MQL
  • Closed seals for transfer line and similar applications
  • Full-flow design has no obstructions to trap swarf or debris
  • Bearing-supported with threaded rotor for easy installation
  • Deep groove radial ball bearings for smooth operation
  • Labyrinth system and large vents to protect ball bearings
  • Balanced mechanical seals made from silicon carbide for long life even under difficult operating conditions
  • Anodized aluminum housing and stainless steel rotor resist corrosion

Operating Specifications:

Media MQL, Coolant
Rotor Connection M16x1.5 LH, 17.993 mm pilot
Housing Connection 3/8"-18 NPT
Coolant Max. Flow 81.8 l/min
Coolant Max. Pressure 69 bar
Coolant Max. Temperature 71 °C
MQL Max. Flow 2040 l/min
MQL Max. Pressure 10 bar
MQL Max. Temperature 71 °C
