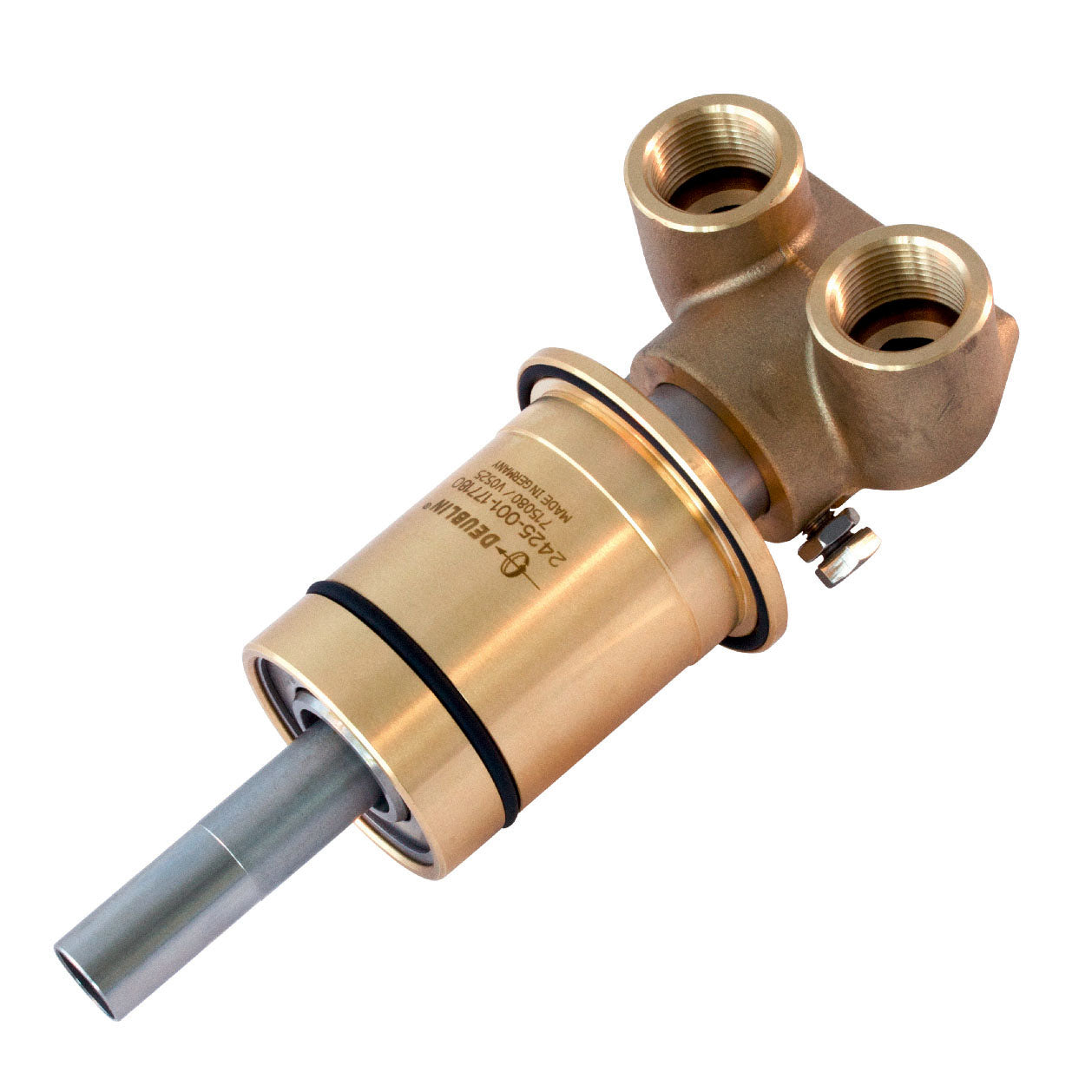

DEUBLIN Rotary Union 2425-001-177180 – Dual-Flow Rotary Union for Water Applications
The DEUBLIN 2425-001-177180 rotary union belongs to the 2400/2425 CCM Series, engineered for reliable water transfer in industrial rolls, cylinders, and cooling systems.
This dual-flow (Duoflow) rotary union supports both Mono- and Duoflow operation and is designed for in-shaft installation. Its balanced mechanical seals (SiC/SiC) ensure low wear, minimal leakage, and long service life — even in continuous operation at elevated temperatures.
Key Features
-
Dual-flow (Duoflow) design – allows simultaneous supply and return flow through a single unit
-
Rotor-mounted, self-supported configuration for in-shaft installation (fits Ø 59 mm bore)
-
Balanced mechanical seal system for smooth operation and reduced wear
-
Full-flow design – unrestricted media passage and low pressure drop
-
Field-serviceable design for easy maintenance and long-term reliability
-
Brass housing and elbow for durability and corrosion resistance
-
Stainless steel rotor and supply pipe for precision and strength
-
O-ring pilot (Ø 58.67 mm) for secure, leak-tight connection
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | 2425 (CCM) |
| Flow Type | Dual-Flow (Monoflow/Duoflow) |
| Media | Water |
| Rotor Connection | O-ring pilot Ø 58.67 mm |
| Housing Connection | G 3/4″-14 BSPP |
| Maximum Pressure | 10 bar (150 psi) |
| Maximum Temperature | 121 °C (250 °F) |
| Maximum Speed | 100 rpm |
| Maximum Flow Rate | 53 L/min (14 GPM) |
| Seal Materials | Silicon Carbide / Silicon Carbide (SiC/SiC) |
| Housing Material | Brass |
| Elbow Material | Brass |
| Rotor & Tube Material | Stainless Steel |
| Mounting Bore | 59 mm (typical for 2425 series) |
Applications
The DEUBLIN 2425-001-177180 rotary union is widely used in:
-
Paper and corrugating machines
-
Cooling and heating rolls
-
Rubber and plastic calenders
-
Textile and converting machinery
-
Industrial water transfer systems
It ensures reliable sealing and flow control in rotating drums or rolls where hot or cold water must circulate efficiently.
Installation & Maintenance
-
Mount directly in the shaft bore (Ø ≈ 59 mm) using the O-ring pilot fit.
-
Suitable for Mono- or Duoflow configuration.
-
Keep media clean and free of particles to maximize seal life.
-
Observe combined limits for pressure, temperature, and speed.
-
Refer to the official DEUBLIN 2425 CCM Series datasheet for detailed installation drawings and torque specifications.
Ordering Information
| Field | Description |
|---|---|
| Manufacturer | DEUBLIN Company |
| Part Number | 2425-001-177180 |
| Product Type | Dual-Flow Rotary Union for Water |
| Thread Type | G 3/4″-14 BSPP |
| Mounting | In-shaft, rotor-supported |
| Series | 2425 CCM Series |
Summary
The DEUBLIN 2425-001-177180 combines balanced sealing technology, robust brass and stainless-steel construction, and full-flow efficiency in a compact, service-friendly design.
It’s the ideal choice for any rotating water-cooled roll or cylinder where performance, longevity, and safety are essential.
