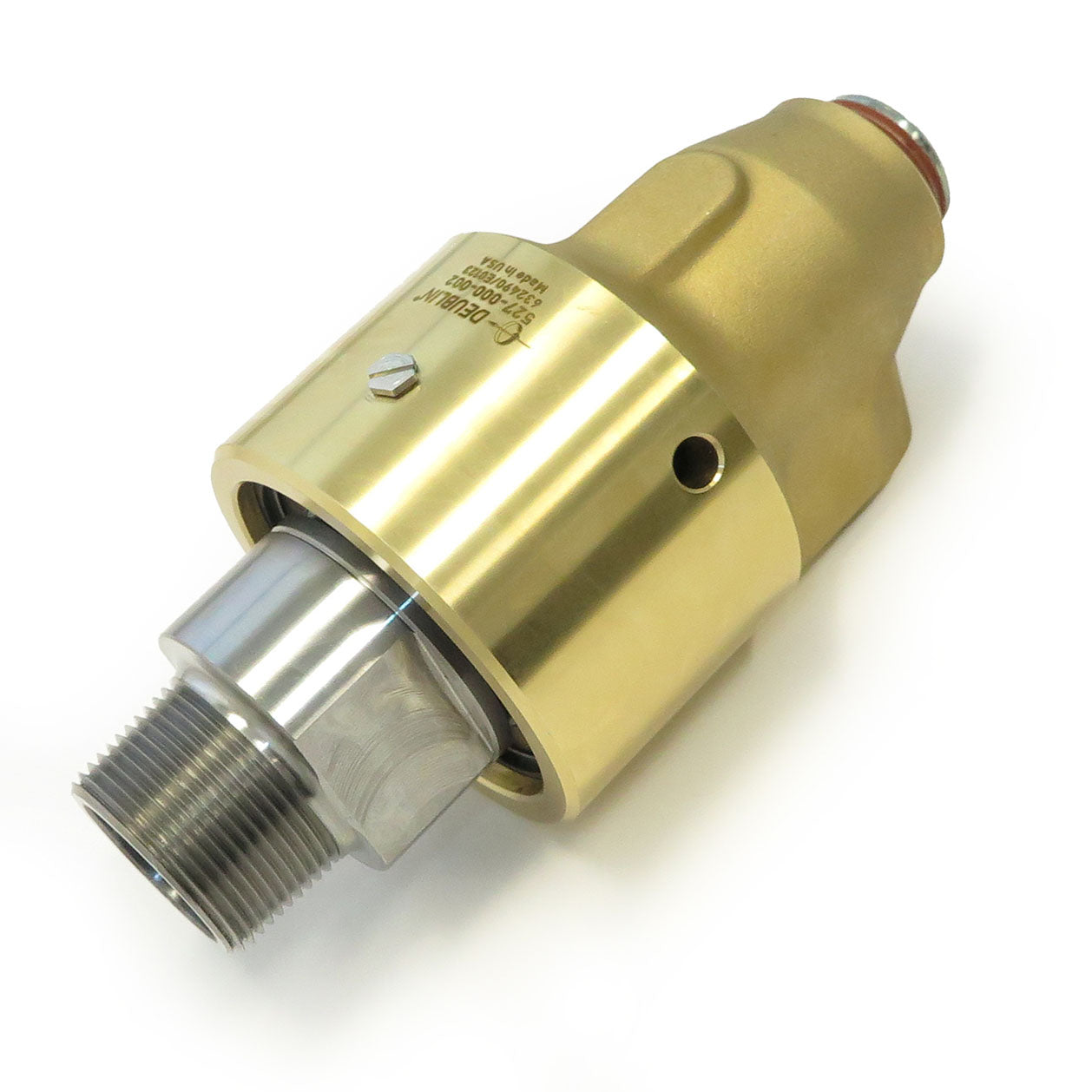

Produkt ähnelt der Abbildung
Deublin GmbH

DEUBLIN Rotary Union 527-000-002

Herstellernummer: 527-000-002
€455,00
€455,00
Spare
Auf Lager

  • Regellieferzeit: Lieferung in 3–5 Werktagen

Menge
Mengeneinheit
1 Stk.
Lagerbestand
20 Stk.
Produktbeschreibung

DEUBLIN 527-000-002 – Rotary Union for Water, 1¼″ NPT LH / 1¼″ NPT Housing

The DEUBLIN 527-000-002 rotary union is a high-performance self-supported rotating union designed for water service. It offers both monoflow and duoflow configurations and features a radial housing connection, balanced mechanical seals and robust construction suited for demanding industrial fluid transfer applications.

Key Features

  • Monoflow and duoflow design — allows flexible installation for supply-only or supply + return flow.

  • Self-supported rotating union — reliable for mounting in rotating shafts or rolls.

  • Radial housing connection with 1¼″-11.5 NPT thread for housing; rotor connection 1¼″ LH NPT.

  • Balanced mechanical seals, keyed rotor seal for minimal leakage and extended service life. Forged brass housing and stainless steel rotor for durability and corrosion resistance.

  • Extended Life Service (E.L.S.) seal combination available for poor water quality.

Technical Specifications

Parameter Specification
Media Water
Rotor Connection 1¼″-11.5 NPT LH
Housing Connection 1¼″-11.5 NPT
Max. Water Flow 46 GPM (≈ 174.3 L/min)
Max. Pressure 10 bar (150 psi)
Max. Temperature 93 °C (195 °F)
Housing Material Forged brass
Rotor Material Stainless steel

Applications

The 527-000-002 rotary union is ideally suited for sectors including:

  • Paper and corrugating machines

  • Printing and packaging systems

  • Plastics and metal processing equipment

  • Agricultural and construction machinery

  • Food, medical, tire & rubber industry rotating systems

    It is particularly used where high-flow water transfer is required in rotating or cylindrical equipment.

Installation & Maintenance

  • Ensure correct orientation of rotor/thread (LH) and housing thread.

  • For duoflow installations check supply lines and return lines as per system design.

  • Maintain water quality – particularly if the E.L.S. seal option is required for poorer media.

  • Follow DEUBLIN’s service guide for seal replacement and rotor maintenance.

Ordering Information

Field Description
Manufacturer DEUBLIN Company
Part Number 527-000-002
Product Type Rotary Union (Water)
Thread Connections 1¼″ NPT LH (rotor), 1¼″ NPT (housing)

⚠️ Disclaimer


All technical data and product information are provided for general reference only.
Although the details are based on sources believed to be accurate (including DEUBLIN manufacturer data), no guarantee or liability is assumed for completeness or correctness.
Users must verify all specifications and ensure suitability for their specific application before installation or purchase.
For any technical or commercial questions, please feel free to contact our team directly — we’ll be happy to support you with individual advice.
