DEUBLIN 57-130-094 – Rotary Union for Water, Steam & Thermal Oil

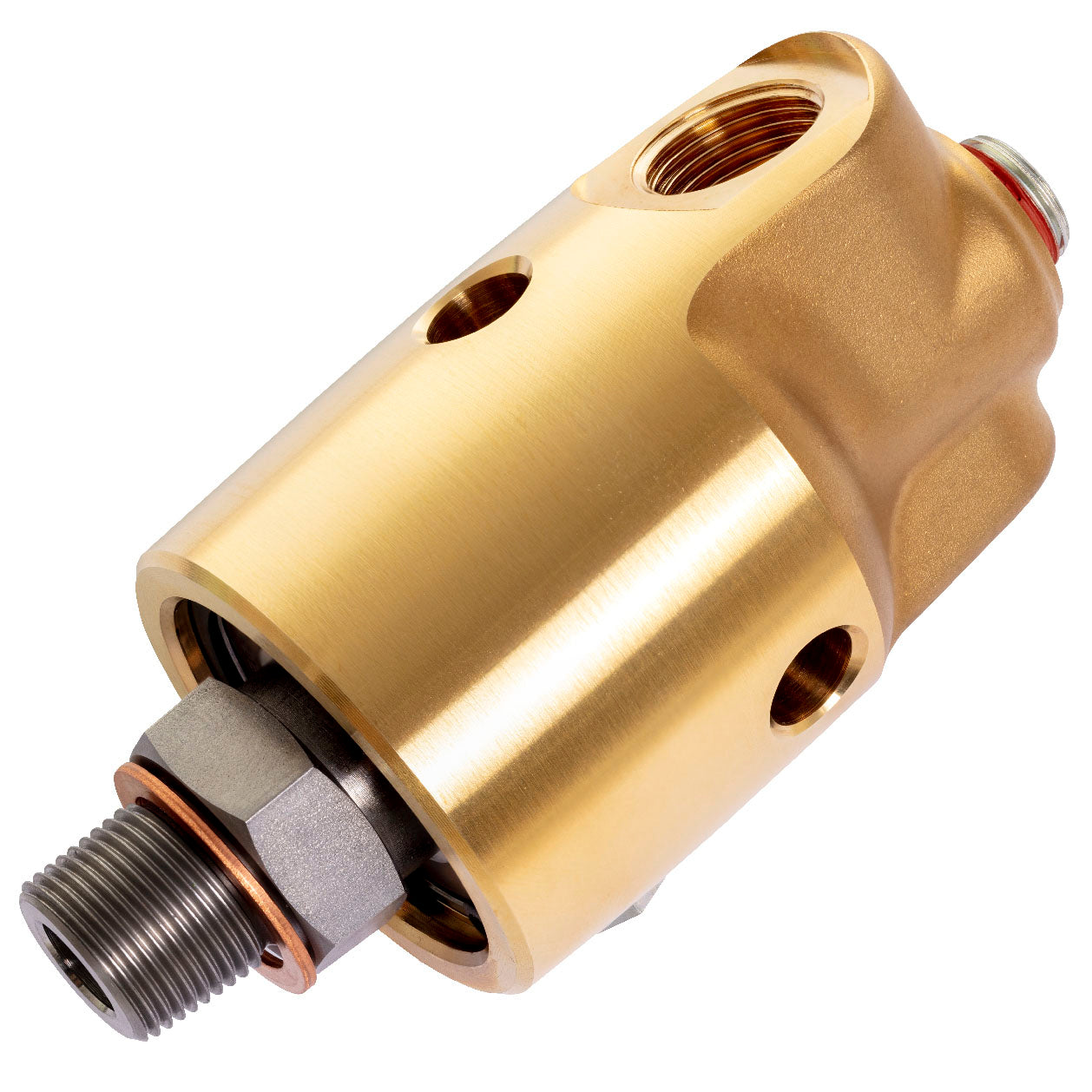

The DEUBLIN 57-130-094 is a self-supported rotary union designed for high-performance transfer of media including water, steam, and thermal oil.
It features a monoflow/duoflow configuration, a radial housing connection, and compact shaft-mounted design for use in demanding industrial environments.
Key Features
-
Monoflow or Duoflow design for flexible supply and return flow configurations.
-
Self-supported construction – the rotor is supported by the shaft for compact installation.
-
Radial housing connection for efficient pipe routing.
-
Balanced mechanical seals minimize leakage and extend service life.
-
Keyed rotor seal ensures secure and precise connection.
-
Forged brass housing and stainless steel rotor for high durability and corrosion resistance.
-
Optional E.L.S. (Extended Life Service) seal combination for poor water quality or harsh operating conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | 57 Series |
| Media | Water, Steam, Thermal Oil |
| Rotor Connection | G 3/8″-19 RH (Right Hand) |
| Housing Connection | G 3/8″-19 |
| Max. Water Flow | 3.3 GPM (≈ 12.5 L/min) |
| Max. Water Pressure | 750 psi (≈ 51.7 bar) |
| Max. Water Temperature | 250 °F (≈ 121 °C) |
| Max. Steam Flow | 13.7 GPM (≈ 51.9 L/min) |
| Max. Steam Pressure | 15 psi (≈ 1 bar) |
| Max. Steam Temperature | 250 °F (≈ 121 °C) |
| Housing Material | Forged Brass |
| Rotor Material | Stainless Steel |
| Overall Length (D1) | 3.937″ (100 mm) |
| Housing Diameter (C) | 1.772″ (45 mm) |
Applications
The DEUBLIN 57-130-094 rotary union is suitable for:
-
Water-cooling or heating systems in rotating machinery
-
Steam and thermal oil transfer in rolls, drums, or cylinders
-
Paper, corrugating, metal, and plastics processing machinery
-
General industrial systems requiring rotating fluid transfer
It is ideal for installations where compact design and multi-media capability are required.
Installation & Maintenance
-
Designed for shaft-mounted installation with correct pilot fit and alignment.
-
Ensure proper thread type and direction before installation (housing and rotor).
-
Maintain clean and filtered media to protect seals and bearings.
-
Follow the DEUBLIN Series 57 installation and service guide for torque settings, seal replacement, and maintenance intervals.
-
Use E.L.S. seals when operating with poor water quality or under heavy conditions.
Ordering Information
| Field | Description |
|---|---|
| Manufacturer | DEUBLIN Company |
| Part Number | 57-130-094 |
| Product Type | Rotary Union (Water, Steam, Thermal Oil) |
| Thread Type | G 3/8″ – housing & rotor |
| Series | 57 Series |
