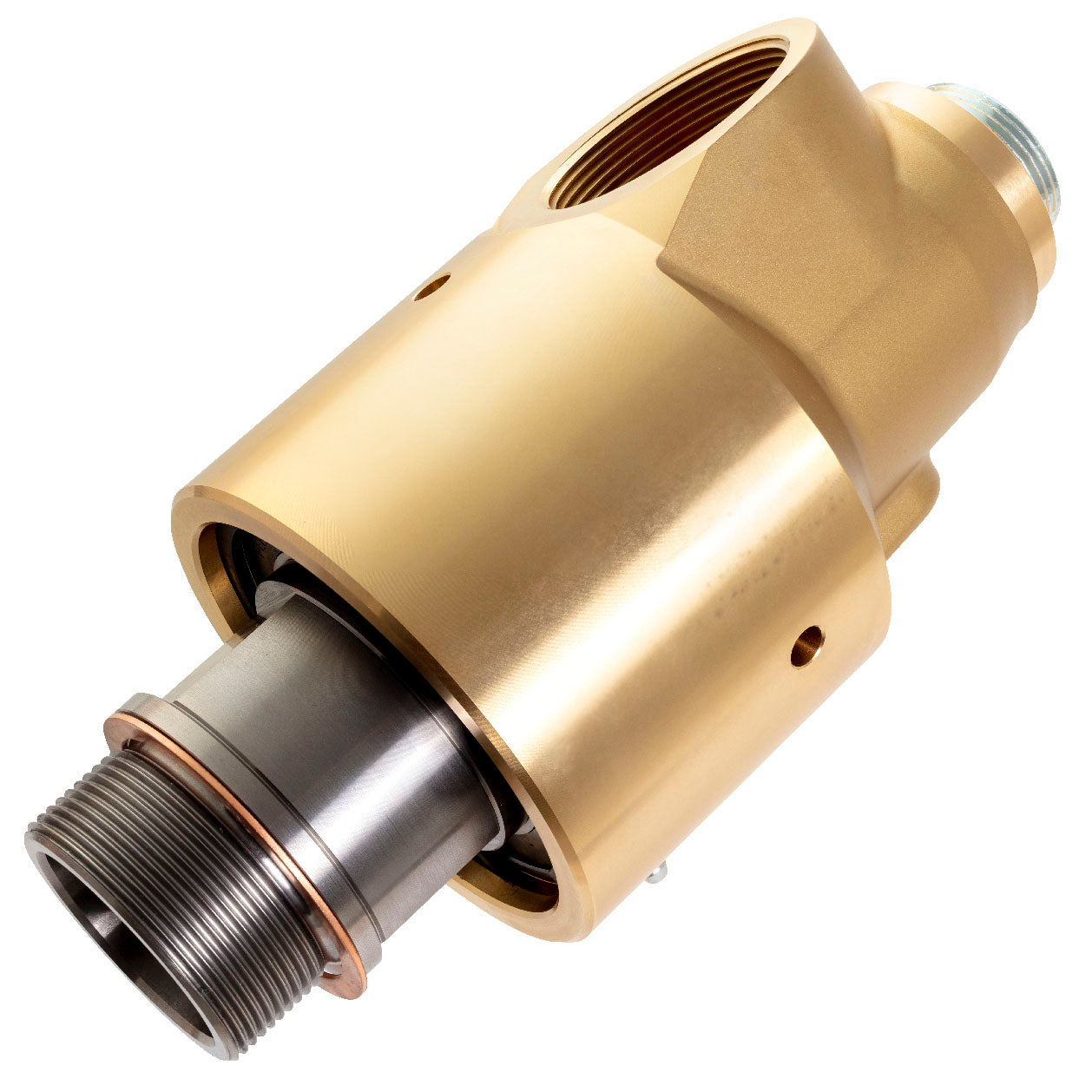

Produkt ähnelt der Abbildung
Deublin GmbH

DEUBLIN Rotary Union 655-500-124

Herstellernummer: 655-500-124
€710,00
€710,00
Spare
Auf Lager

  • Regellieferzeit: Lieferung in 3–5 Werktagen

Menge
Mengeneinheit
1 Stk.
Lagerbestand
1 Stk.
Produktbeschreibung

Deublin 655-500-124

  • Monoflow and duoflow operation
  • Self-supported rotating union
  • Radial housing connection
  • Balanced mechanical seals
  • 3 vent holes
  • Forged brass housing and stainless steel rotor
  • Special options include threaded vent holes, low torque design
  • Seal Combinations: Carbon Graphite/Bronze for water; Carbon Graphite/Ceramic for hot oil, hot water and saturated steam; Tungsten Carbide/Ceramic for severe conditions such as poor water quality



Operating Specifications:

Media Water, Steam, Hot Oil
Rotor Connection G 2"-11 RH
Housing Connection 2"-11.5 NPT
Hot Oil Max. Flow 390.5 l/min
Hot Oil Max. Pressure 6.9 bar
Hot Oil Max. Temperature 121 °C
Steam Max. Flow 1627.2 l/min
Steam Max. Pressure 1 bar
Steam Max. Temperature 121 °C
Water Max. Flow 390.5 l/min
Water Max. Pressure 13.8 bar
Water Max. Temperature 121 °C
